This self-help guide is designed to resolve Pan-Tilt-Zoom (PTZ) rotation issues with your OB20 camera. If your camera lens is drooping automatically or can only move up and down but not left and right (Pan), please follow these steps for troubleshooting:
OB20 PTZ Troubleshooting Guide
Issues with lens rotation are typically caused by mechanical obstructions, firmware calculation errors, or physical motor damage. Please follow these procedures:
Step 1: Software Adjustment & Calibration

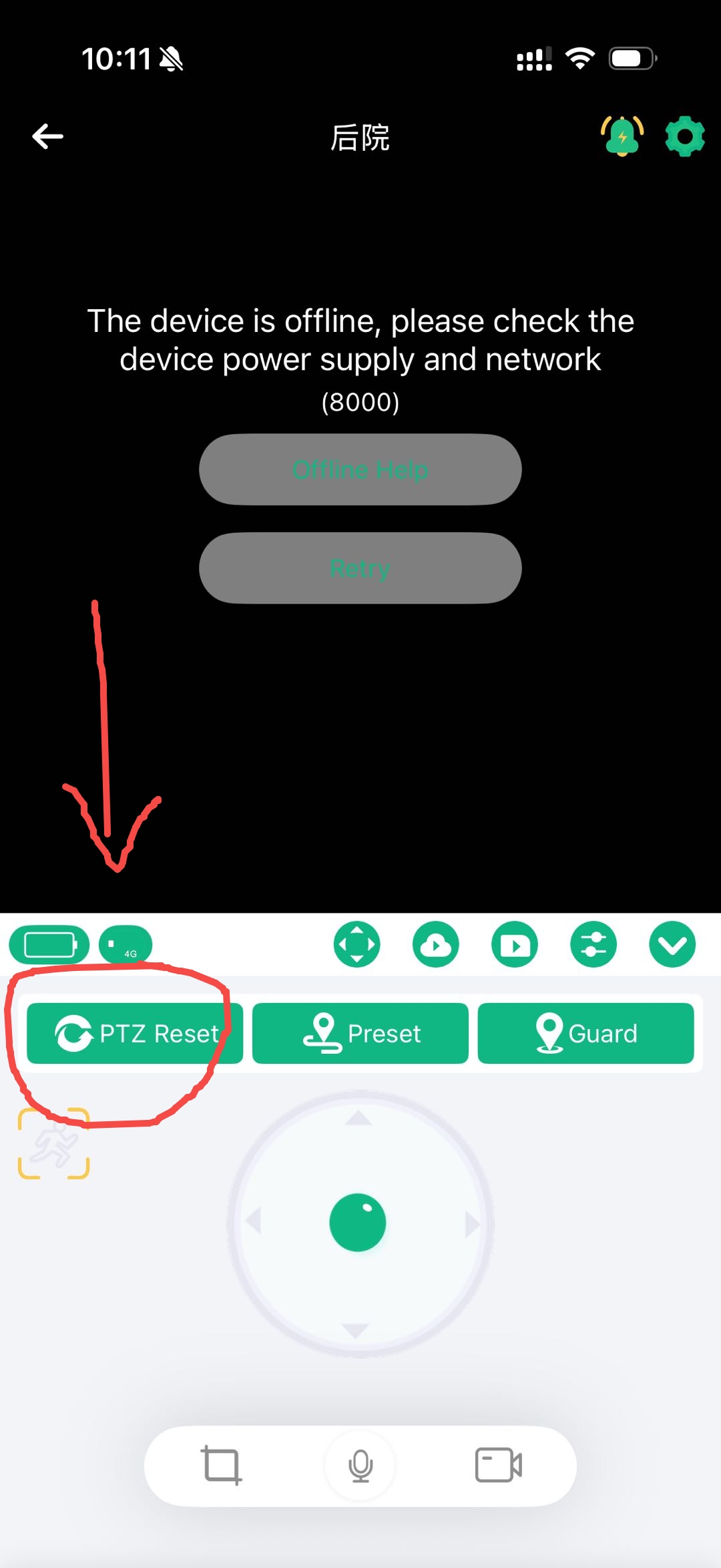

Reset via App: Open the NiView App, go to the PTZ control interface, and click the "PTZ Reset" button to recalibrate the lens.

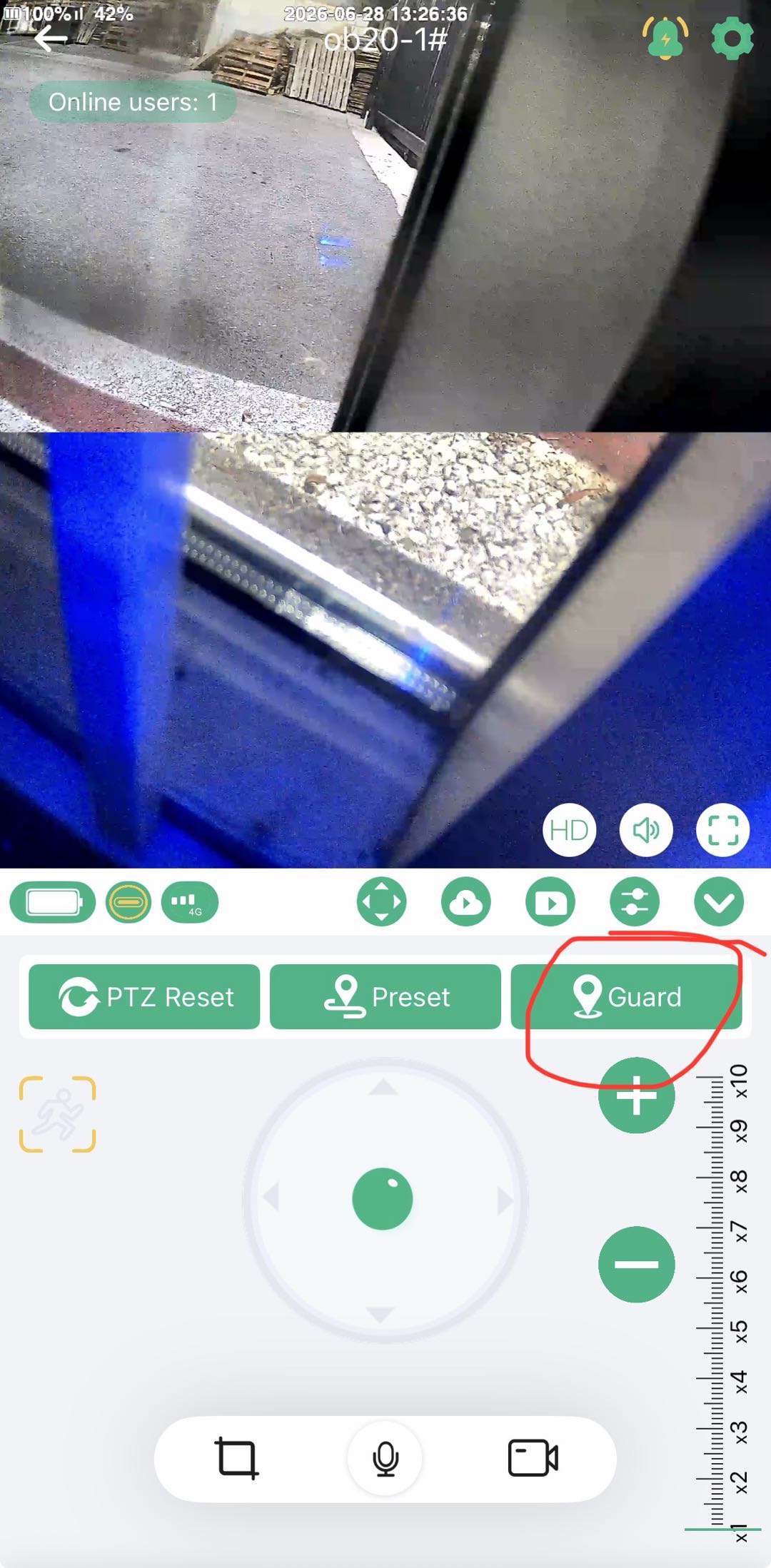

Disable Guard Mode: Turn off the "Guard" (Watch Position) setting and test if the manual pan/tilt controls work properly.
- System Reboot: Restart the device and try controlling the rotation again to see if the issue is resolved.
Step 2: Physical & Environmental Check
- Clear Obstructions: Inspect the installation site for any branches or foreign objects that might be blocking the lens. It is recommended to take a photo of the installation environment to verify there are no physical barriers.
- Listen for Noise: While attempting to rotate the camera via the App, listen closely to the device. Note if the motor makes any abnormal noises (such as clicking or grinding) during operation.
Step 3: Contact Technical Support
If the above steps do not restore full PTZ functionality, please contact our support team:
- Required Materials: Provide a short video showing the camera's failure to rotate and capturing any abnormal motor sounds.
Contact Information:
- Customer Support: cs@dragontouch.com
